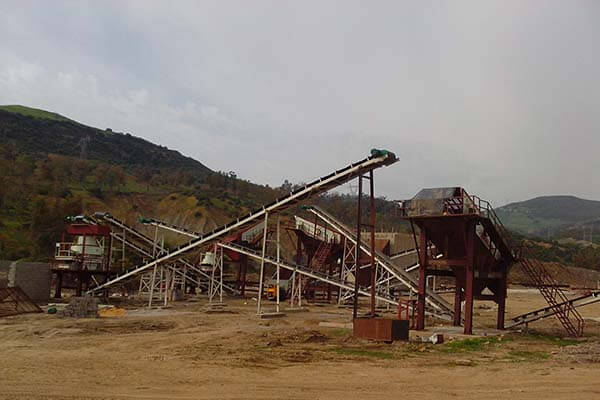

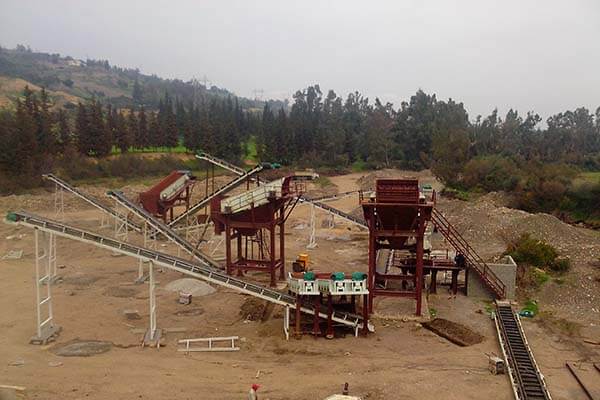

Sand Making&Washing Plant in Algeria

• Type: Semi-Mobile(mounted on steel structure)
• Max Feeding Size: 100mm
• Final Output Size: 0-3mm, 3-8mm, 8-15mm, 15-25mm
• Capacity: 200TPH

On September 29 of 2010, we received the L/C from our Algerian customer---Mr.Jamal. He ordered a complete set of sand making and washing plant, including sand making machine VSI5X8522, spring cone crusher PYB900, screw type sand washing machine XL915 and 2XL915, vibrating screen 2YZS2460, 2YZS1860 and 2YZS1848, belt conveyors, spare parts and steel structure. Total cost is around USD350,000. They opened Letter of Credit(L/C NUMBER: 161101230CDV5547) for us.

Their project is located in Algiers, which is to crush river stone from 100mm into 3mm, 8mm, 15mm, 25mm. Then wash the sand 3mm and 8mm at 200tons per hour for building construction. The investor from Jordan visited China and met our engineers in Beijing before placing the order to us. They are convinced by our layout design, our engineers’ many years’ experience and professionalism.

We loaded and shipped these goods in 1x40'FR+6x40'HQ from Qingdao to Algiers.

In our factory, we have normal type VSI series and new type VSI5X series vertical shaft impact crusher for choice. Compared with VSI, new type VSI5X have more advantages as below:

• 1After optimized design, the deep-chamber rotor can make the capacity increased by 30%;

• 2Surrounding plate can be inverted, to improve the material’s utilization and increase the lifespan by more than 48%;

• 3Combined hammer design, only need to replace the wearing part, can reduce the operation cost by over 30%. And the use of vice hammer can prevent damage to the vertical plate after the main hammer worn;

• 4The key components’ material adopt the wear-resistant and high temperature resistant materials of the important industries in the USA;

• 5Rhombus shape impact plate is used to prevent the damage of vertical plate;

• 6The selection of bearing is international brand from Japan, Sweden, America, etc;

• 7The design of optimal launch mouth and smooth curve reduces flow resistance of the materials and increases the throughout capacity greatly;

• 8Dual-use material distribution tray is easy to operate and can make two feeding way changes easily;

• 9Special seal structure in lower part of main shaft guarantees no oil leak even without seal;

• 10Japanese hydraulic opening cover device is originally imported. The cover is moved easily, and replacement and inspection of inner part is easy;

• 11The selection of high level protection of the motor with features of high efficiency, low noise, etc. The motor complies with (IEC) International Electrotechnical Commission standard, F class insulation, IP54/55 protection level.
