River Stone Crushing&Screening Plant in Philippines

  • Type: Semi-Mobile(mounted on steel structure)
  • Max Feeding Size: 630mm
  • Final Output Size: 0-1/4”, 1/4”-3/8”, 3/8”-3/4”, 3/4”-1 1/2”
  • Capacity: 150TPH

On Mar 02 of 2019, we received deposit from our customer in Philippines. They ordered a complete river stone crushing and screening plant, including:

  • Grizzly Vibrating Feeder: F5X1036H/1 set

  • Primary Jaw Crusher: PEW760/1 set

  • Secondary Single Cylinder Hydraulic Cone Crusher: HST160/H1/1 set

  • Vibrating Screen: 4YZS2460

  • Vibrating Screen: 4YZS1860

  • Screw Type Sand Washing Machine: XL915

  • Belt Conveyors: 8sets

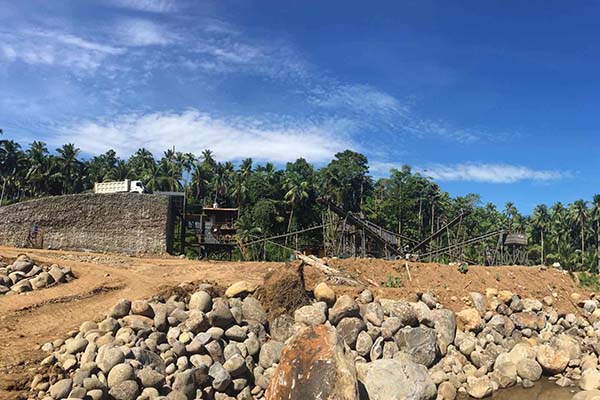

Their project is located near Cagayan De Oro. It is to crush river stone from 630mm into 0-1/4”, 1/4”-3/8”, 3/8”-3/4”, 3/4”-1 1/2”. The find sand 0-1/4” is washed by XL915 sand washing machine.

We loaded and shipped these goods in 1x20'OT+1x40'FR+7x40'HQ from Qingdao to Cagayan De Oro.

 River stone is very hard, whose Mohs’ Hardness Scale is 6-7. So in this plant, we use single cylinder hydraulic cone crusher as secondary crusher, who has more advantages than others:

  • Inter-particle crushing works between materials that increase the working life of mantle and bowl liner.

  • Provide a more consistent gradation and superior cubic products. Better performance in the construction and sand making field.

  • Real-time displays the specification of crushing, hydraulic and lubrication in operation

  • It can realize unmanned operation by continuously measuring and automatic setting system.

  • Dynamic adjustment of motor power and crusher pressure under working reduces the unnecessary losses made by human error and maximize energy into production.

  • The CSS can be adjusted on load.

  • The flexible gradation adjustment will save the production cost while increasing the benefits.

  • Constant load setting: The CSS will be adjusted automatically according to the changes of the feeding size, moisture and hardness of the material and make sure the load of the crusher is constant.

  • Constant CSS setting: Once the CSS is set, the output will be kept by continuously measuring and compensating for crusher liner wear.

  • The mantle has basic angel between 53°-56°, which will reduce the influence of the capacity due to the moisture content.

  • Design with deeper crushing cavity will optimize single cylinder hydraulic cone crusher with more crushing times and higher efficiency.

  • Hydraulic system: The design pressure of the sealing elements is 20MPA, the maximum working pressure is 4MPA. Pressure margin produced by the higher pressure improves the reliability of operation.

  • Imported air cooling system avoids the disadvantage of water cooling system, such as lack of water and leakage of water.

  • Adoption of international first-class brand controller, such as Winner, Sun, Danfoss, MTS, etc.

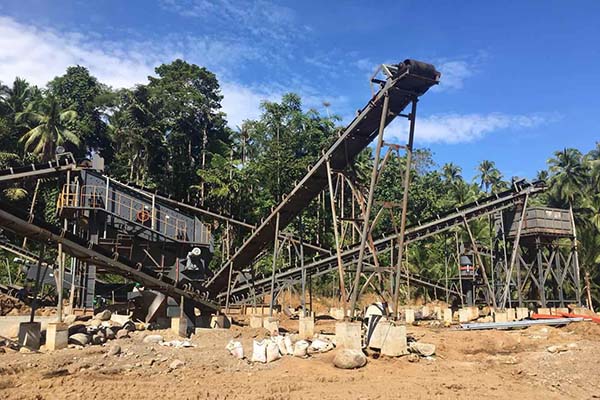

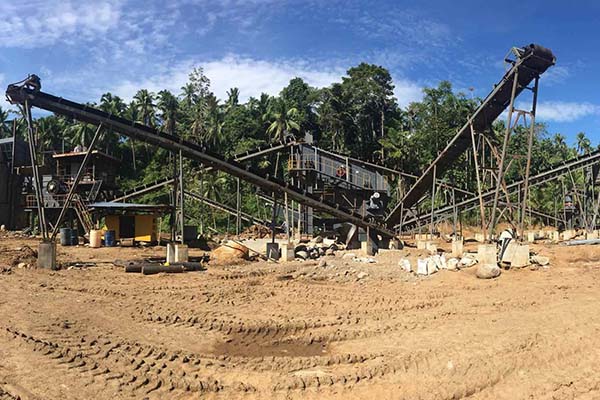

River Stone Crushing&Screening Plant in Philippines

If you want to visit this project on site, or contact our client to check the machine’s work performance, please contact us: WhatsApp:+8613838097071
