Basalt Crushing&Screening Plant in Saudi Arabia

• Type: Semi-Mobile(mounted on steel structure)
• Max Feeding Size: 630mm
• Final Output Size: 0-3mm, 3-20mm and 0-5mm, 5-14mm, 14-25mm
• Capacity: 250-300TPH/EACH PLANT

On April 30 of 2014, one customer from Royal Cement in KSA ordered 3 complete sets of basalt crushing and screening plant at a time, each plant is including:

• 1.Hopper: LC4000x4000

• 2.Grizzly Vibrating Feeder: GZD1100x4200/1 set

• 3.Pan Feeder: GZG90-4/2 sets

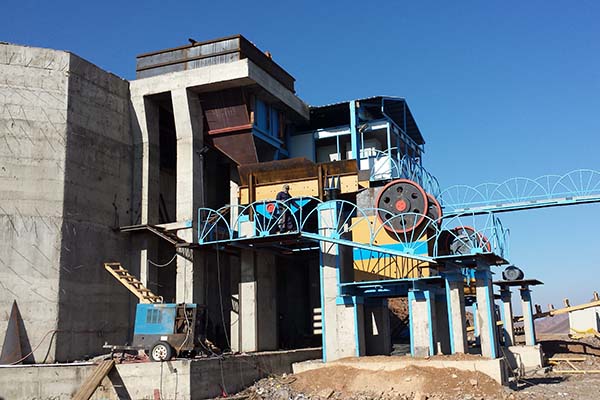

• 4.Primary Jaw Crusher: PE750X1060/1 set

• 5.Secondary Multi-cylinder Hydraulic Cone Crusher: HPT300/1 set

• 6.Secondary Symons Cone Crusher: CSB160/1set

• 7.Tertiary Vertical Shaft Impact Crusher: VSI9526/1 set

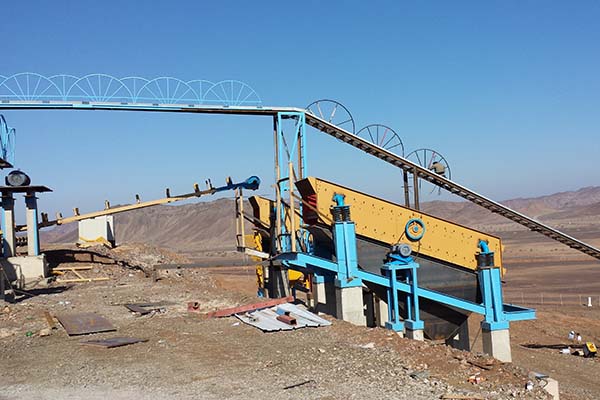

• 8.Vibrating Screen: 2YZS1860/1 set

• 9.Vibrating Screen: 3YZS1860/3 sets

• 10. Belt Conveyor: 20sets/407meters

• 11. Motor Brand: SIEMENS; 380V/50Hz

• 12. Gear Box Brand: SEW

• 13. Main Panel Component Brand: SIEMENS

• 14. Bearing Brand: TIMKEN(TWB) and SKF

• 15. Steel Structure

Total cost of this order is more than USD2,400,000. We loaded and shipped these goods 563packages totally in 3x20'GP+3x20'FR+9x20'OT+25x40'HQ from Qingdao to Jeddah port.

Their project is located in Madinah, which is to crush basalt from 630mm into 3mm, 5mm, 14mm, 20mm, 25mm at 250-300tons per hour for road and building construction. This plant is specially designed for them, which has two functions to produce shaped and unshaped final outputs. The shaped output is cubic pieces, which is better for road and building construction. In the unshaped output, there is more flaky pieces, whose cost is lower.

Basalt is one kind of hard stone, whose Mohs’ Hardness Scale is 5-7. So we use multi-cylinder hydraulic cone crusher as secondary one in the plant. The reason why we equip multi-cylinder hydraulic cone crusher as secondary one in the plant are its features/advantages, which are listed as below:

1.Unique inter-particle crushing method

Inter-particle crushing works between materials that increases the working life of mantle and bowl liner;

Provide a more consistent gradation and superior cubic products. Better performance in the construction and sand making area.

2.Integration of the hydraulic station and lubrication system

Small footprint and easy maintenance;

Save 20% lubrication oil;

Germany AKG air cooling system avoids the disadvantage of water cooling system, such as lack of water and leakage of water;

Larger flow oil pump will guarantee the stability of oil flow;

Temperature sensors keep tracking of the return oil temperature, which will guarantee the stable performance.

3.Advanced hydraulic system

Larger diameter tubing and larger capacity hydraulic accumulator improve the stability and response sensitivity;

Hydraulic motor setting adjustment and lock cylinder make it easy to reset the CSS; The hydraulic tramp release cylinders make it easy to pass tramp iron and clean the cavity;

Less downtime will cut the maintenance cost.

4.Optimized liner retention technology

The thicker liners increase reliability and service life;

Advanced liner retention technology greatly simplifies the liner change. Epoxy resin is not needed, which will cut the manpower and time cost.

5.Safe and reliable

Equipped with the Siemens PLC, touch screen, and intelligent control system, operation and data recording is more simple;

Larger bearing area, larger bearing capacity and longer service life;

The overall casting frame with box beam design characterized by larger strength;

The interior of the crusher is protected from dust by the adoption of multiple sealing protection, such as positive pressure dust prevention system, U-T seal and contact-type spherical floating seal.

6.Final aggregates with cubic shape
