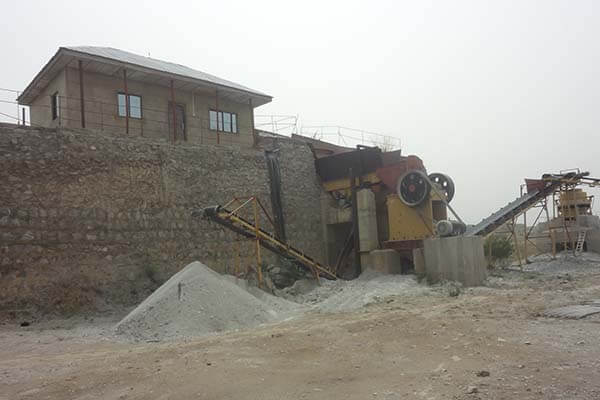

Granite Crushing&Screening Plant in Nigeria

• Type: Fixed(mounted on concrete foundation)
• Max Feeding Size: 630mm
• Final Output Size: 0-1/4”, 1/4”-1/2”, 1/2”-3/4”, 3/4”-1”(cubic shape)
• Capacity: 150-200TPH

On May 20 of 2012, we received deposit from PANDSON NIG LTD in Lagos. They ordered a complete granite crushing and screening plant, including:

• 1.Hopper: LC4000x4000/1 set

• 2.Vibrating Feeder: GZD1100x4200/1 set

• 3.Primary Jaw Crusher: PE750x1060/1 set

• 4.Secondary Symons Cone Crusher: CSB160/1 set

• 5.Tertiary Vertical Shaft Impact Crusher: VSI5X9532/1 set

• 6.Vibrating Screen: 4YZS2160/1 set

• 7.Vibrating Screen: 2YZS2160/1 set

• 8.Belt Conveyors: 232meters Long

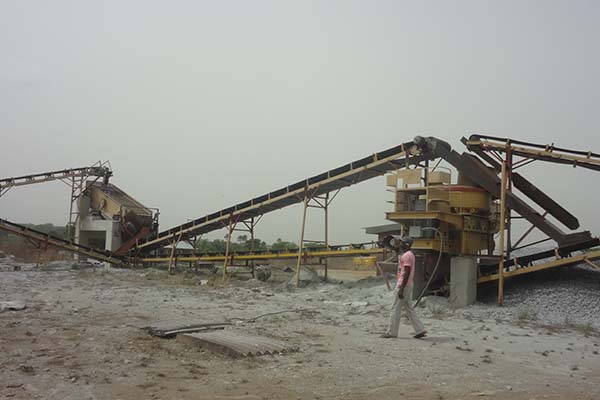

Their project is located in Illorin. It is to crush granite from 630mm into 1/4”, 1/2”, 3/4” and 1”. Then use vertical shaft impact crusher to shape the final output into cubic pieces, which is better used in building and road construction. We optimize the design of rotor by deepen the rotor chamber, which can make the capacity increased by 30%. What’s better, we adopt combined hammer design, it only needs to replace the wearing part, which can reduce the operation cost by more than 30%. And the use of vice hammer can prevent damage to the vertical plate after the main hammer worn.

We loaded and shipped the goods into 2x40'FR+1x20'FR+2x20'OT+4x40'HQ from Qingdao to Lagos.

Regarding cone crusher, we have spring type, single cylinder hydraulic type, multi-cylinder hydraulic type for choice. They have their own advantages as below:

For spring cone crusher:

• 1.Simple Structure: Spring cone crushers have a straightforward structure, making them easy to operate and maintain.

• 2.Lower Cost: They tend to be more cost-effective initially compared to hydraulic cone crushers.

• 3.Good for Medium-Hard Materials: Spring cone crushers are suitable for medium-hard to hard materials.

For singly cylinder hydraulic cone crusher:

• 1.High Efficiency: These crushers offer higher crushing efficiency and better product shape due to the hydraulic adjustment and hydraulic clearing systems.

• 2.Adjustability: The hydraulic adjustment system allows for easy and precise setting changes to achieve desired product sizes.

• 3.Less Downtime: Hydraulic clearing reduces downtime by quickly clearing out any uncrushable materials.

For multi-cylinder hydraulic cone crusher:

• 1.High Crushing Efficiency: Multi-cylinder cone crushers have superior crushing efficiency, especially for hard materials.

• 2.Greater Production Capacity: These crushers can handle larger tonnages and produce more cubic-shaped products.

• 3.Better Automation: Multi-cylinder crushers often come with advanced automation features for better monitoring and control.

In summary, the choice between these cone crusher types depends on factors such as the material being crushed, desired product size, efficiency requirements, initial and maintenance costs, and the available skill level for maintenance and operation.
